Fits 2017 & 2019 Bagger(FLHT/FLHR/FLHX/FLTRX/FTLRU)
Note:Does not fit CVO Model

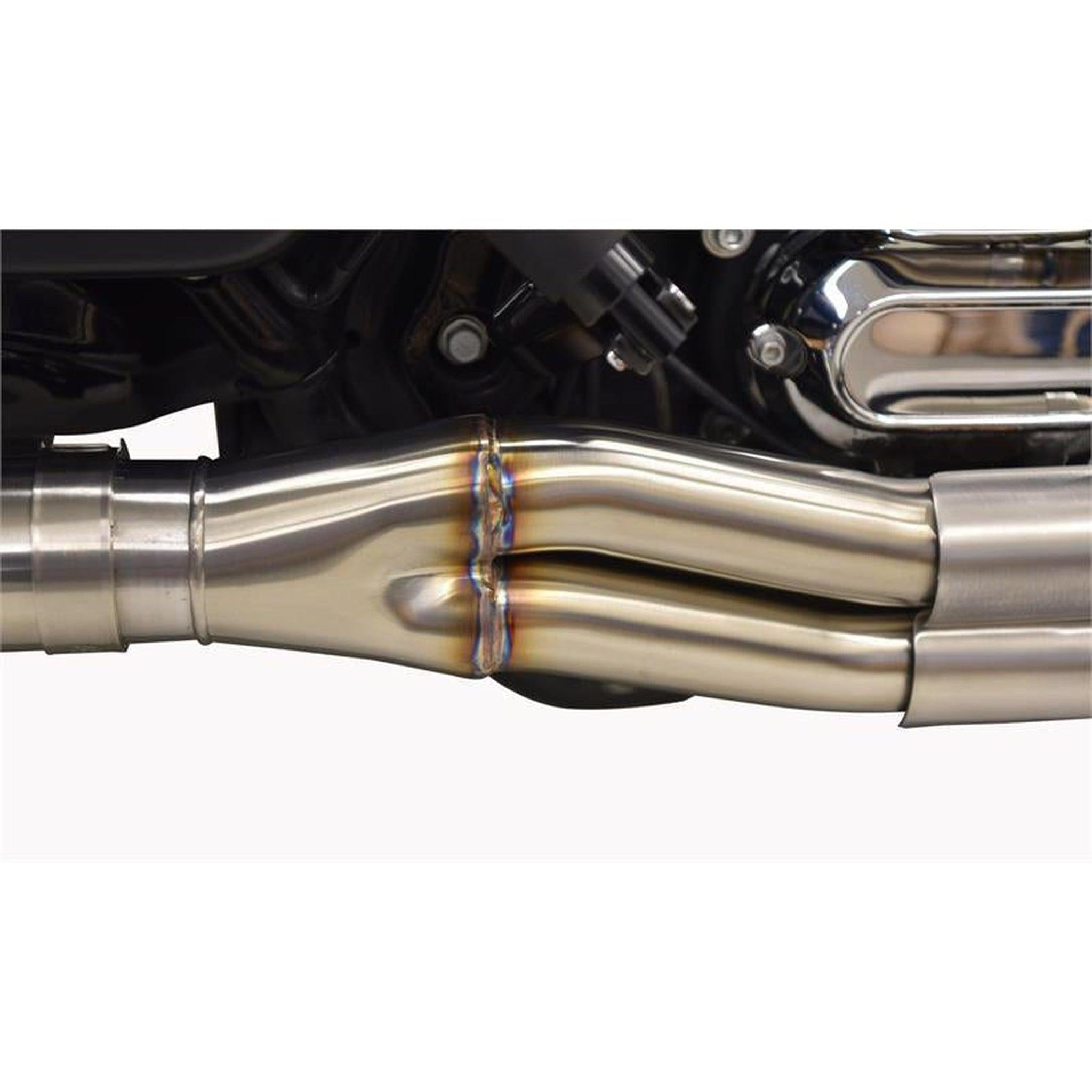

- Stepped headers merge into a true reverse-cone 4" Megaphone Can muffler
- 1-3/4 in. headpipe steps up to 1-7/8 in. into the collector to increase flow and improve performance
- 4 in. Megaphone muffler body with matching billet end cap
- Removable spiral-core louvered baffle included
- Hand Tig Welding
- 18mm and 12mm O2 Ports with adapaters and plugs
- Include mounting hardware
- Available with short Megaphone muffler in brushed finish
- Partial Heat shields included
- Made in the U.S.A.
SIGN AND RETURN THE WAIVER FORM BEFORE WE CAN BUILD AND DELIVER THE EXHAUST SYSTEM*

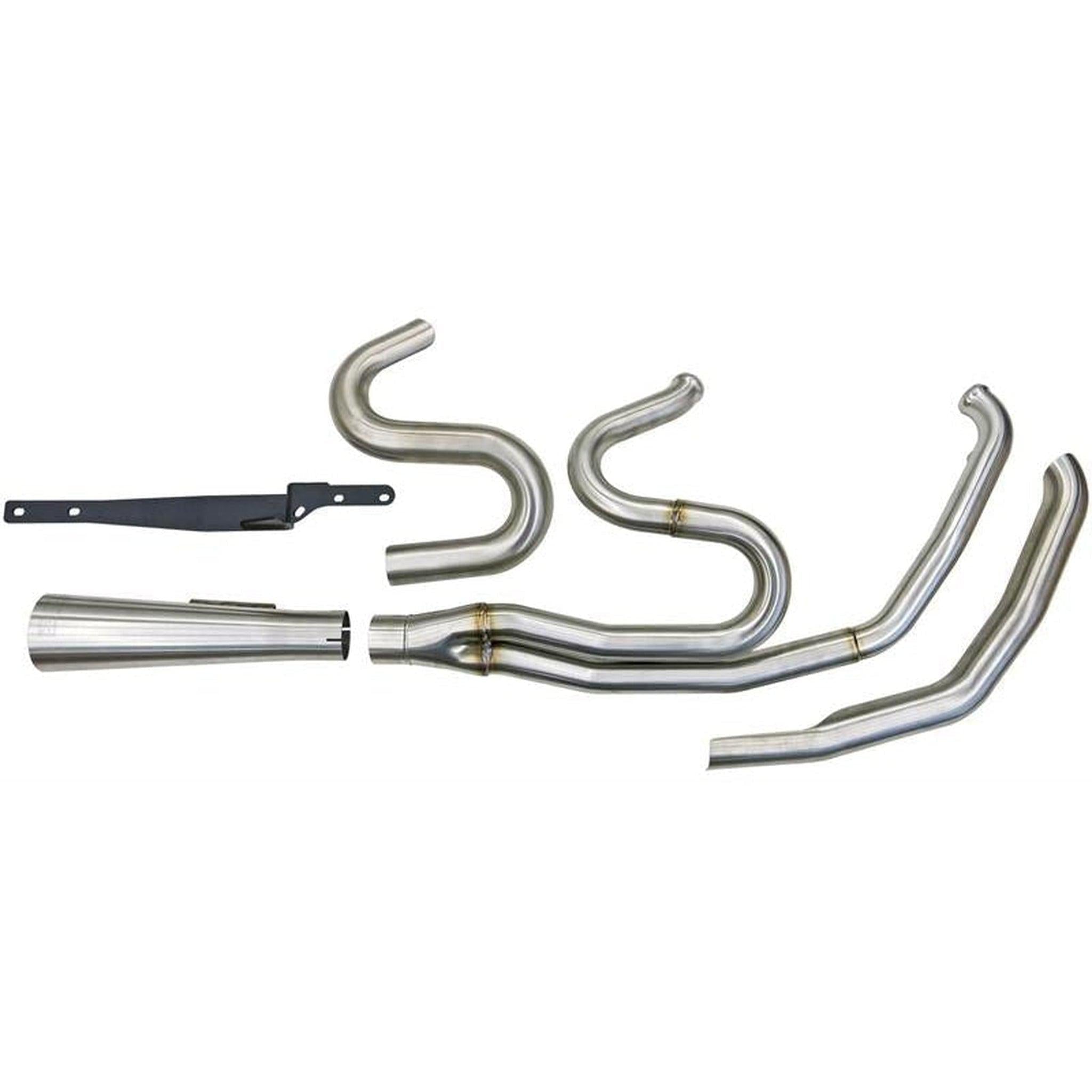

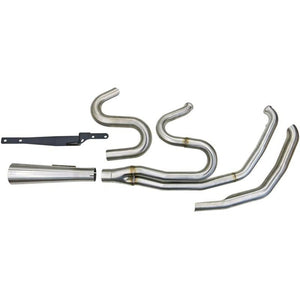

(1) Front headpipe
(1) Rear headpipe
(1) Collector muffler w/baffle & end cap
(1) Front Partial Stainless heat shield
(1) Rear Partial Stainless heat shield
(2) 27-64 Band clamps
(1) 5/16 in. Washer
(1) #32 Hose clamp
(1) 1-7/8 in. P- Clamp
(1) 5/16 in. Flange nut
(2) 18mm O2 Sensor plugs
(1) 5/16 x 3/4 in. Hex bolt
(6) #24 Hose clamps
(2) 12mm O2 Sensor plugs
NOTE: Not all products are legal for sale or use on pollution controlled vehicles. Check your local laws and state laws. For Closed course competition use only, not legal for street use.
NOTE:There is no warranty on exhaust pipes and mufflers with regard to any discoloration. Discoloration (blueing) is the result of tuning characteristics, cam timing, carburetor jetting, overheating, etc., and is not caused by defective manufacturing.
NOTE:Installation of a new exhaust system may change your motorcycles fuel-air mixture requirements. We recommend purchasing a fuel management tuner.
Drag Part# 1800-2201
